- 2.8" LCD display

- Inductance: 20uH/20mH/200mH/2000mH/20H/200H/2000H/20KH range; +/-(0.5%+5) accuracy

- Capacitance: 200pF2nF/20nF/200nF/2000nF/20uF/200uF/2000uF/20mF range; +/-(0.5%+5) accuracy

- Resistance: 20ohm/2Kohm/20Kohm/200Kohm/2Mohm/20Mohm/200Mohm; +/-(0.3%+5) accuracy

- Measuring Frequency: 100Hz/120Hz/1KHz/10KHz/100KHz

- Measuring Voltage: 0.6Vrms

- Measuring Parameters: L/C/R/DCR/Q/D//ESR

- Special funtions: Max. display (19999); D/Q Max. display (1999); D/Q Resolution (0.001); Automatic Range; Real time display for measuring frequency; Measurement Models; Power off automatically; Low voltage display; Data hold; Relative measurement; USB Data transmission; USB Port /PC Data recording; LCD backlight; Analog bar (26pcs); LCR Auto identification measurement

- Powered by 1 x 9V 6F22 battery (included) or USB port

item3
bottom graphic

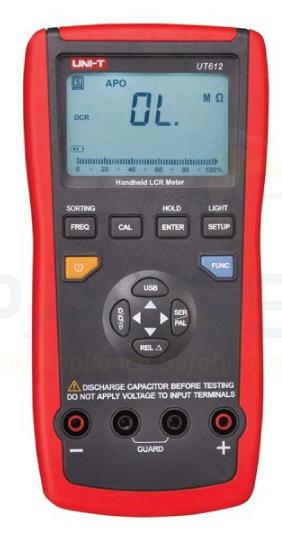

UNI-T UT612 Precision LCR Meter (buy here)
